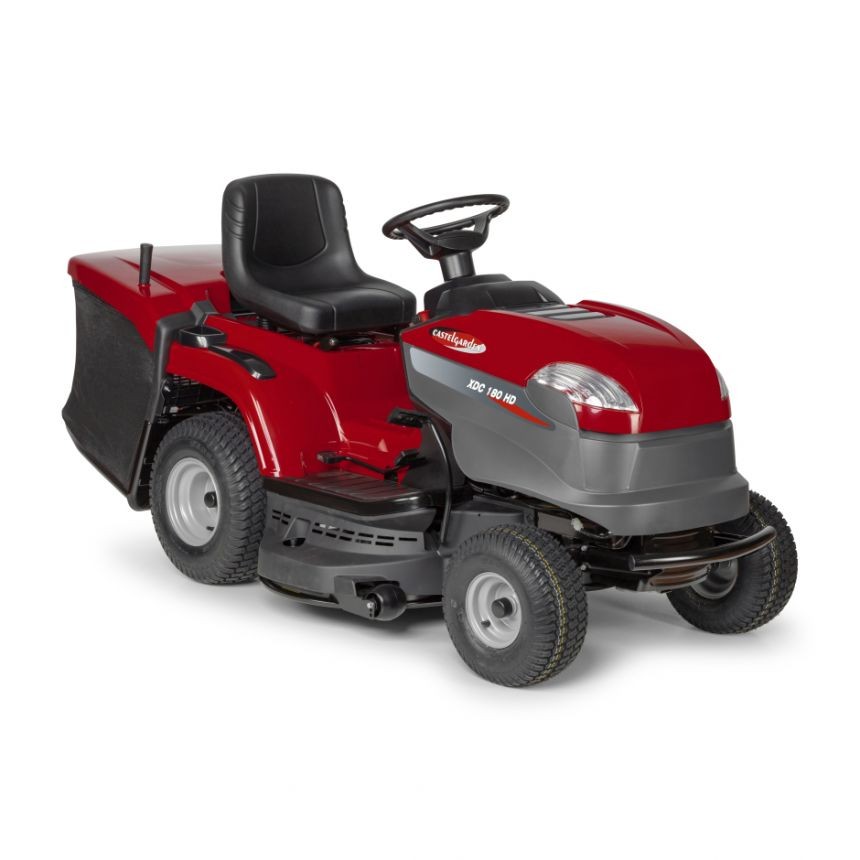

Castelgarden XDC 180 HD lawn tractor is made for collecting big quantities of cut grass is powered by a Castelgarden ST 550 twin-cylinder engine.
The pedal-operated hydrostatic transmission allows an easier and stress-less speed management.
The 98 cm cutting deck is equipped with two blades and anti-scalp wheels. The cutting height can be adjusted to 7 different settings, ranging from 25 to 80 mm, to better adapt any grass condition. The blades are engaged via an electromagnetic clutch, without any effort and without having to push or pull any lever. The grass collector can hold up to 240 litres of clippings, so to ensure long cutting sessions without any need of stopping and emptying the bag. The ergonomically designed seat and soft-grip steering wheel offer extra comfort.

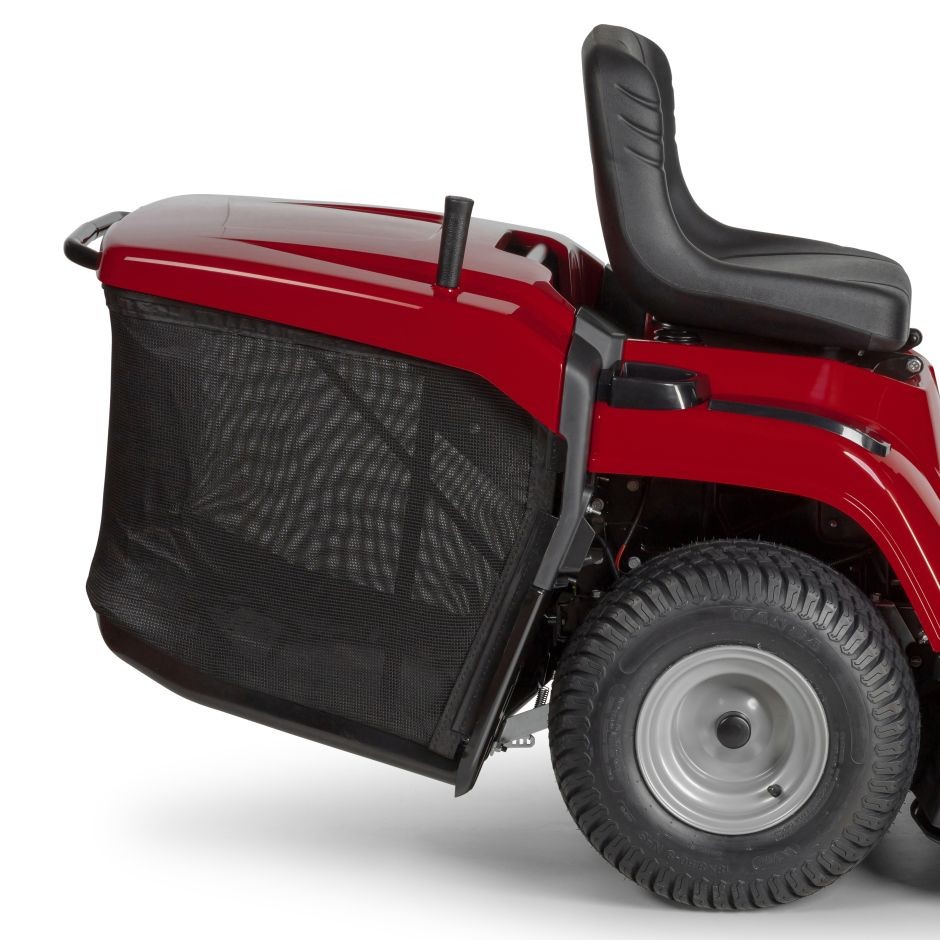

The grassbag can contain up to 240 L of grass cuttings. Long mowing sessions, without stopping.
Blades can be activated or de-activated through a button. The electormagnetic clutch allows you to manage them without any stress.

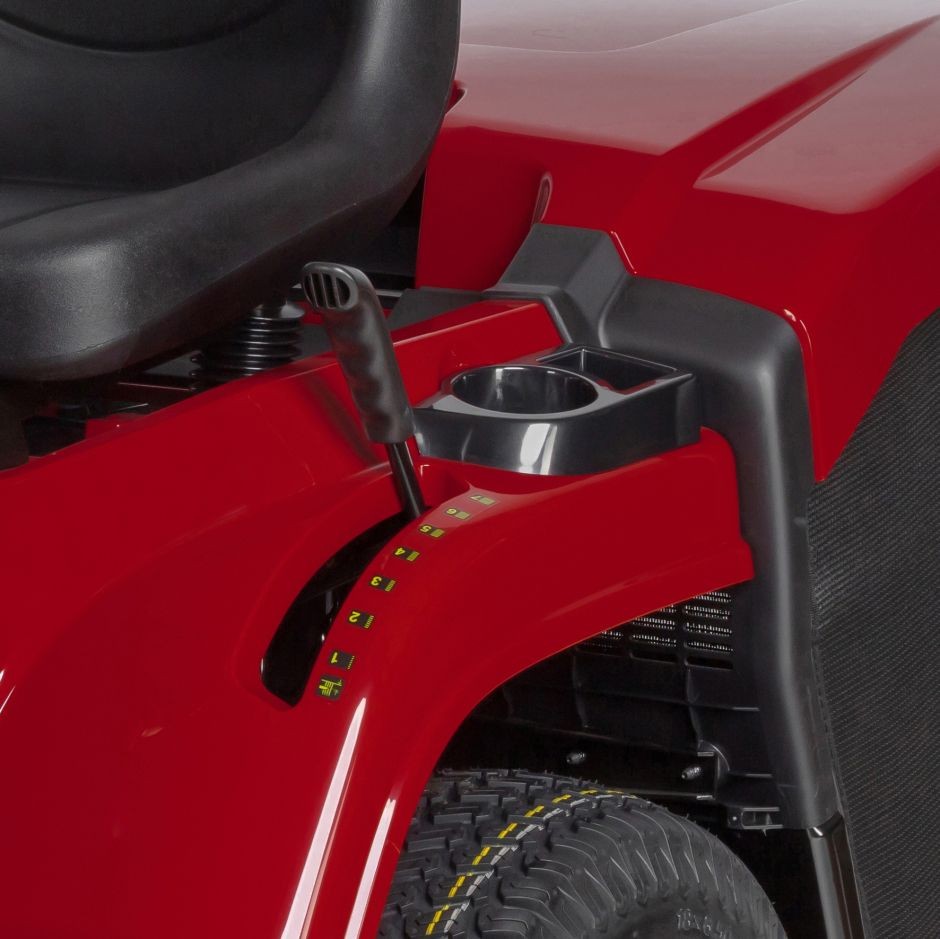

Thanks to 7 available cutting height settings, the cutting deck can operate from 25 mm up to 80 mm and cut grass in different conditions.
Mulching kit is sold separately.
Minimum uncut radius | 70 cm |
---|
Cutting method | Collecting |
---|
Cutting width | 98 cm |
---|
Reverse mowing | Yes |
---|
Blade rotation | Untimed |
---|
Cutting height adjustment | Manual with lever |
---|
Cutting height positions | 7 positions |
---|
Cutting height range | 25 - 80 mm |
---|
Number of blades | 2 |
---|
Additional cutting method | Rear discharge, Mulching |
---|
Blade engagement type | Electric |
---|
Transmission type | Hydrostatic |
---|
Transmission method | Pedal-operated |
---|
Optional
Mulching kit | Optional |
---|
Battery charger | Optional |
---|
Trailer hitch kit | |
---|
Pack weight | 229 kg |
---|
Product length | 2338 mm |
---|
Product width | 880 mm |
---|
Product height | 1100 mm |
---|
Product weight | 169 kg |
---|
Battery capacity | 18 Ah |
---|
Power source | Petrol |
---|
Power | 10.4 kW |
---|
Engine Brand | STIGA |
---|
Engine model | ST 550 Twin Cylinder |
---|
Displacement | 586 cm³ |
---|
Engine rotation speed | 2600 rpm |
---|
Battery Voltage | 12 V |
---|
Choke | Manual |
---|
Engine cooling | Air |
---|
Fuel tank capacity | 6 liters |
---|
Maximum working area | 4500 m² |
---|
Collector emptying | Manual |
---|
Collector capacity | 240 l |
---|
Steering wheel | Castelgarden ergonomic |
---|
Seat type | Castelgarden classic |
---|
Seat adjustment | Screws |
---|
Dashboard | Yes with LED |
---|
Front wheel size | 15x6.00-6 |
---|
Rear wheel size | 18x8.50-8 |
---|
Headlights | Conventional |
---|
Bumper | Yes |
---|
Washing link | Yes |
---|
Collector type | Textile |
---|
Storage compartment | Yes |
---|
Cup holder | Yes |
---|
Pivoting front axle | Yes |
---|
Antiscalp wheels | 2 |
---|
Safety system | Seat with Safety Contact Breaker |
---|
Max vibration on driver's seat (m/s2) | 0.7 |
---|
Measured sound pressure level at operator ear dB(A) | 86 |
---|
Measured sound power level dB(A) | 100 |
---|
Max vibration on steering wheels (m/s2) | 8.2 |
---|
Guaranteed sound power level (LwA) - dB(A) | 100 |
---|
