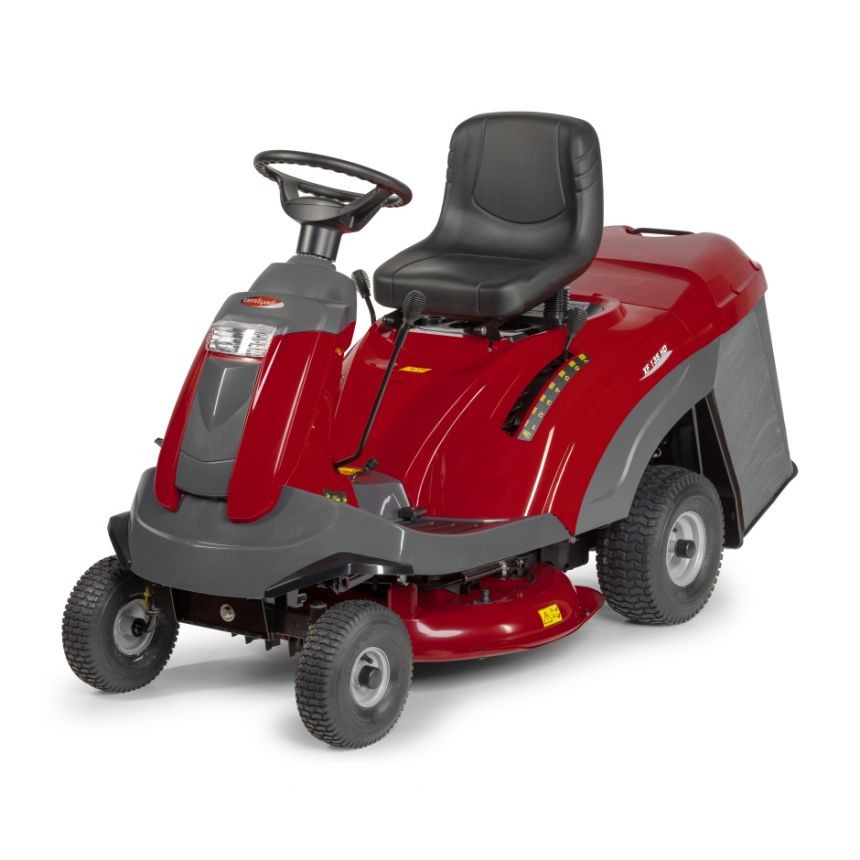

Castelgarden XF 135 HD ride-on mower is made for collecting grass thanks to its 170L bag. This compact and performing lawn tractor is powered by a Castelgarden single-cylinder engine.
The 72 cm cutting deck is equipped with two blades. The cutting height can be adjusted to 7 different settings, ranging from 30 to 80 mm, to better adapt any grass condition. The collector bag can contain up to 170 L of cut grass. The ergonomic steering wheel allows a more comfortable working.
The mulching kit is sold separately.
This ride-on mower's compact dimensions and structure make it even easier to manage.

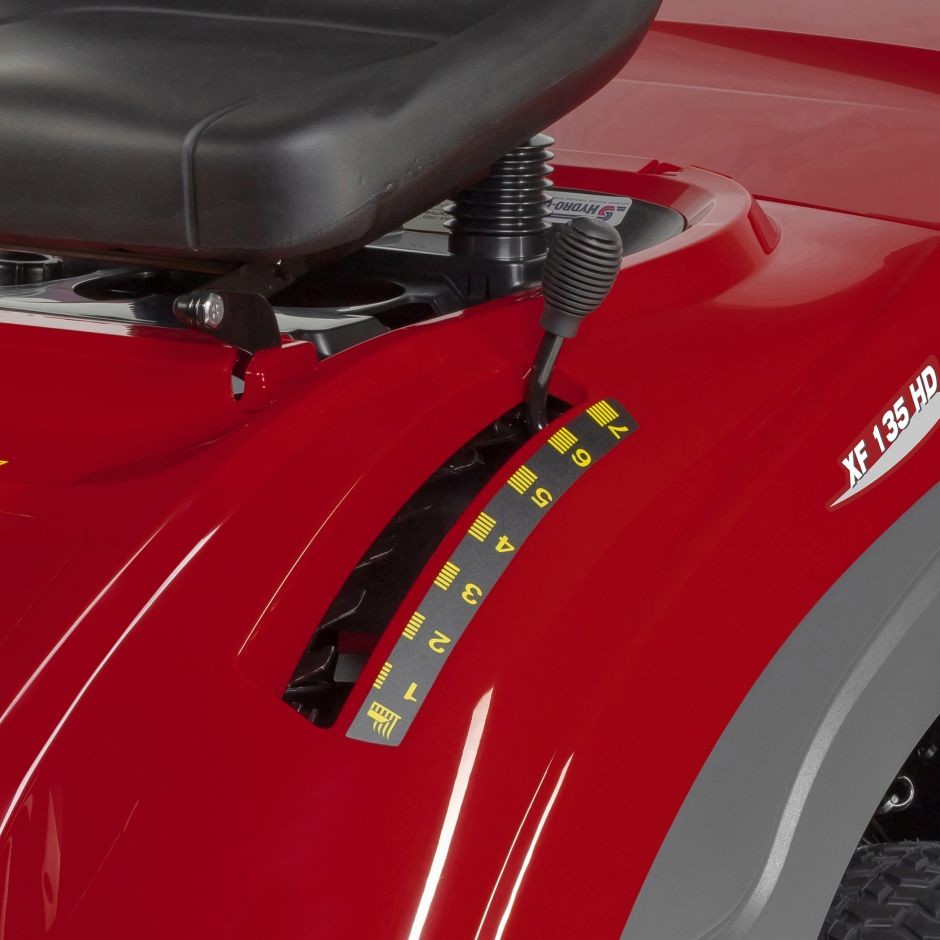

Thanks to 7 available cutting height settings, the cutting deck can operate from 30 mm up to 80 mm and cut grass in different conditions.
| Minimum uncut radius | 70 cm |
|---|
| Cutting method | Collecting |
|---|
| Cutting width | 72 cm |
|---|
| Reverse mowing | Yes |
|---|
| Cutting height adjustment | Manual with lever |
|---|
| Cutting height positions | 7 positions |
|---|
| Cutting height range | 30 - 80 mm |
|---|
| Number of blades | 1 |
|---|
| Additional cutting method | Mulching |
|---|
| Blade engagement type | Manual |
|---|
| Transmission type | Hydrostatic |
|---|
| Transmission method | Lever-operated |
|---|
| Mulching kit | Optional |
|---|
| Battery charger | Optional |
|---|
| Trailer hitch kit | Not applicable |
|---|
| Pack weight | 193.5 kg |
|---|
| Product length | 1858 mm |
|---|
| Product width | 745 mm |
|---|
| Product height | 1122 mm |
|---|
| Product weight | 161 kg |
|---|
| Battery capacity | 18 Ah |
|---|
| Power source | Petrol |
|---|
| Power | 6.5 kW |
|---|
| Engine Brand | STIGA |
|---|
| Engine model | ST 350 Powered by STIGA |
|---|
| Displacement | 352 cm³ |
|---|
| Engine rotation speed | 2800 rpm |
|---|
| Battery Voltage | 12 V |
|---|
| Choke | Manual |
|---|
| Engine cooling | Air |
|---|
| Fuel tank capacity | 4 l |
|---|
| Maximum working area | 2500 m² |
|---|
| Collector emptying | Manual |
|---|
| Collector capacity | 170 l |
|---|
| Steering wheel | Castelgarden ergonomic |
|---|
| Seat type | Castelgarden classic |
|---|
| Seat adjustment | Screws |
|---|
| Dashboard | Yes with LED |
|---|
| Front wheel size | 11x4.00-4 |
|---|
| Rear wheel size | 15x6.00-6 |
|---|
| Headlights | Conventional |
|---|
| Washing link | Yes |
|---|
| Collector type | Textile |
|---|
| Pivoting front axle | Yes |
|---|
| Safety system | Seat with Safety Contact Breaker |
|---|
| Max vibration on driver's seat (m/s2) | 0.99 |
|---|
| Measured sound pressure level at operator ear dB(A) | 85.1 |
|---|
| Measured sound power level dB(A) | 99 |
|---|
| Max vibration on steering wheels (m/s2) | 3.14 |
|---|
| Guaranteed sound power level (LwA) - dB(A) | 100 |
|---|
