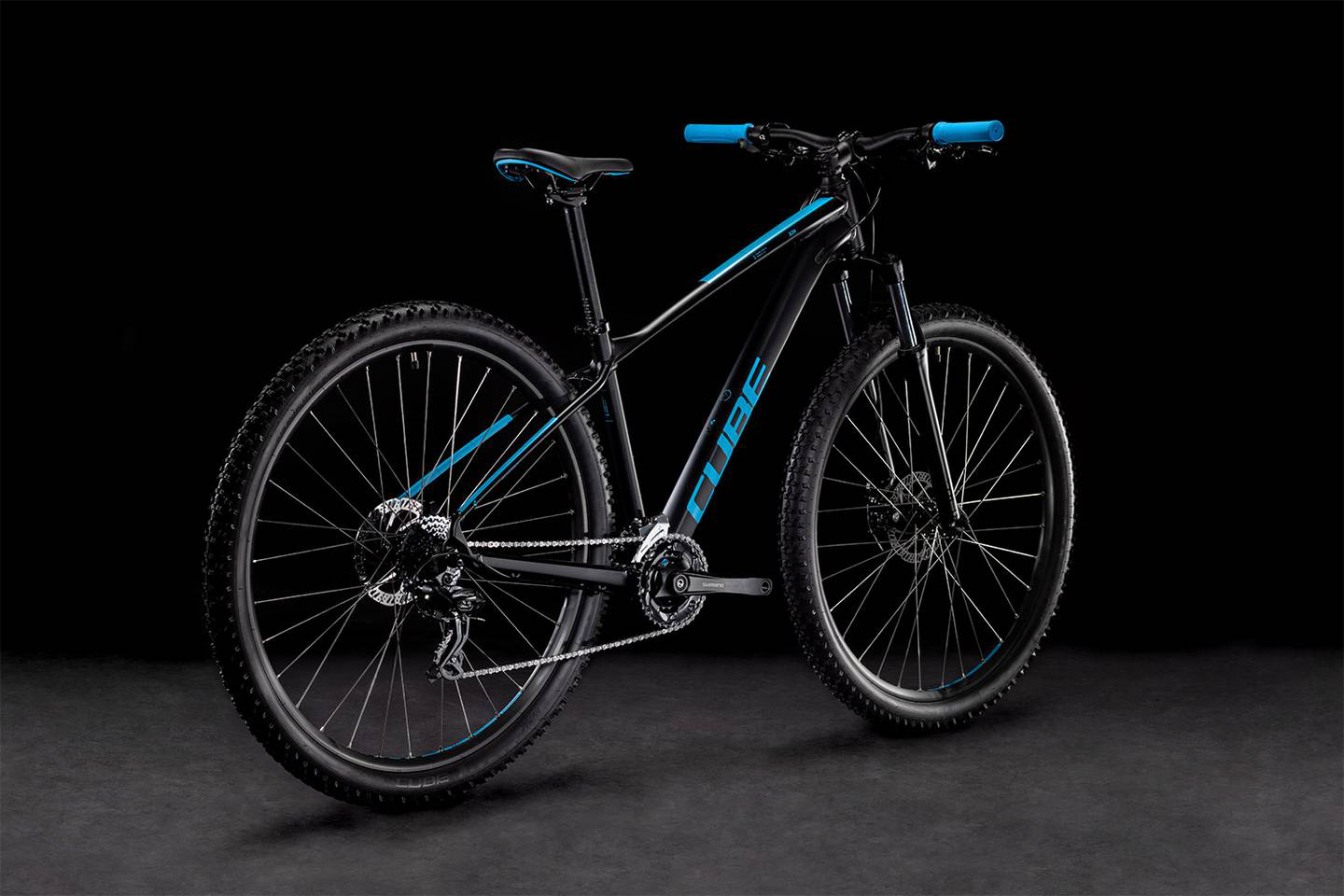

CUBE AIM

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

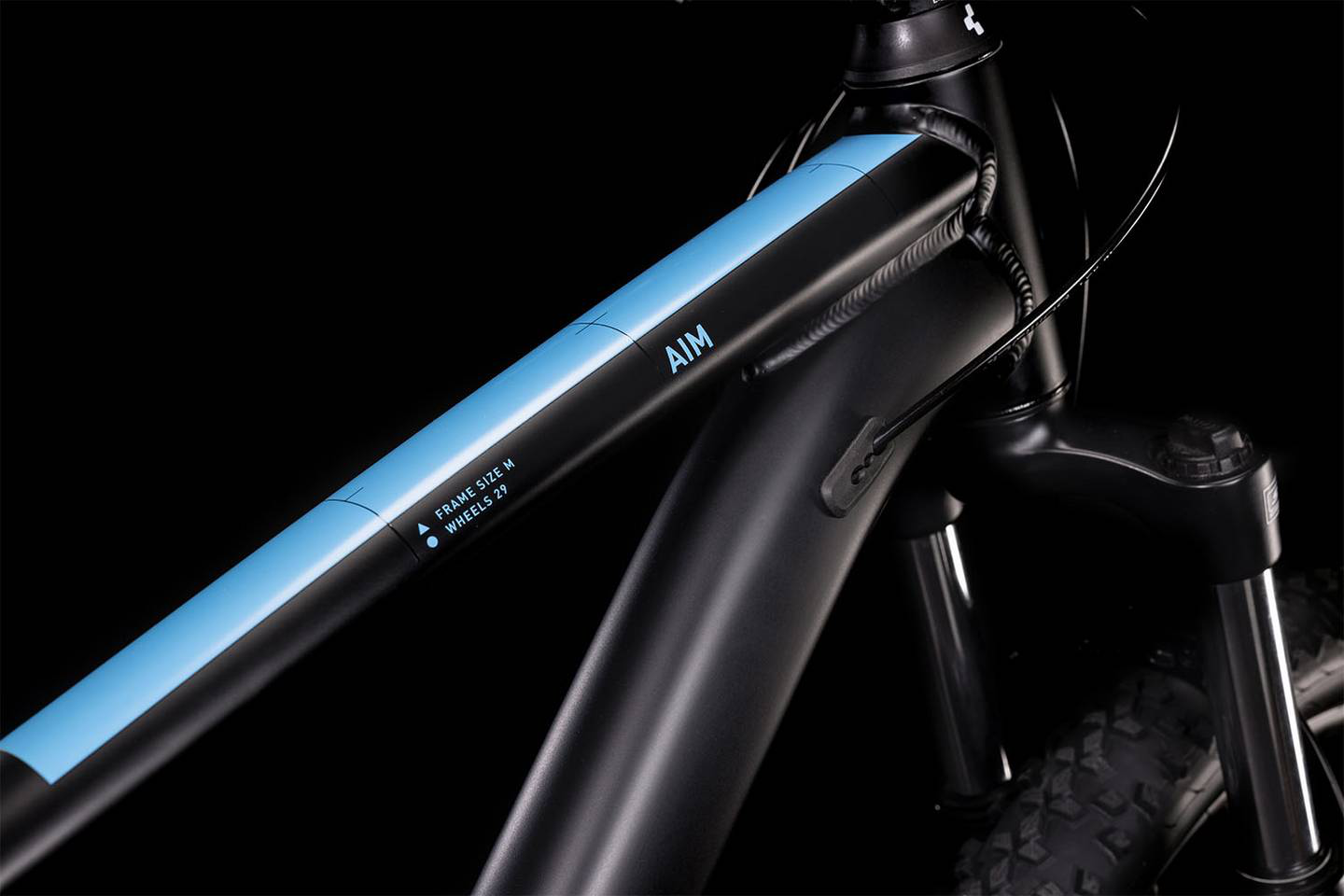

• FRAME Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• SIZE Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22")
• FORK SR Suntour XCE, 100mm

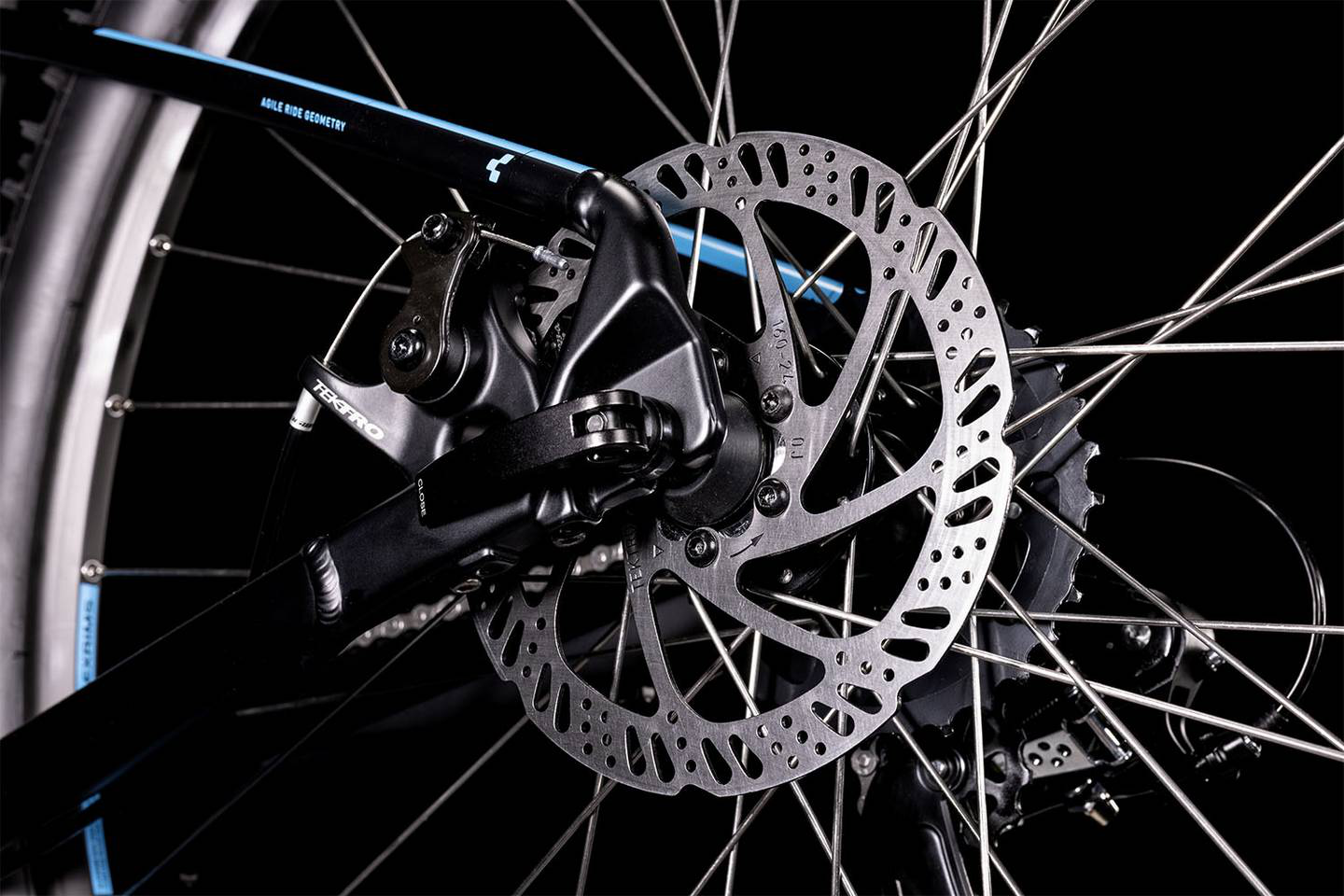

• BRAKE SYSTEM Tektro MD-280/U310R, Mech. Disc Brake (160/160)
• REAR DERAILLEUR Shimano RD-TX800, 8-Speed
• FRONT DERAILLEUR Shimano FD-M315, Top Swing, 31.8mm Clamp
• SHIFTERS Shimano SL-M315, Rapidfire-Plus
• BOTTOM BRACKET Feimin FP-B902N, 73mm BSA
• CRANKSET Shimano FC-M315, 36x22T
• CASSETTE Shimano CS-HG200, 12-32T
• CHAIN KMC Z8.3
• FRONT HUB CUBE Alloy Light, QR, 6-Bolt
• REAR HUB CUBE Alloy Light, QR, 6-Bolt
• RIMS CUBE ZX20, 32H, Disc
• TYRES CUBE IMPAC Smartpac, 2.25
• STEM CUBE Performance Stem, 31.8mm
• HANDLEBAR CUBE Rise Trail Bar, 680mm
• GRIPS ACID React
• SEAT POST CUBE Performance Post, 27.2mm
• SEATCLAMP CUBE Varioclose, 31.8mm

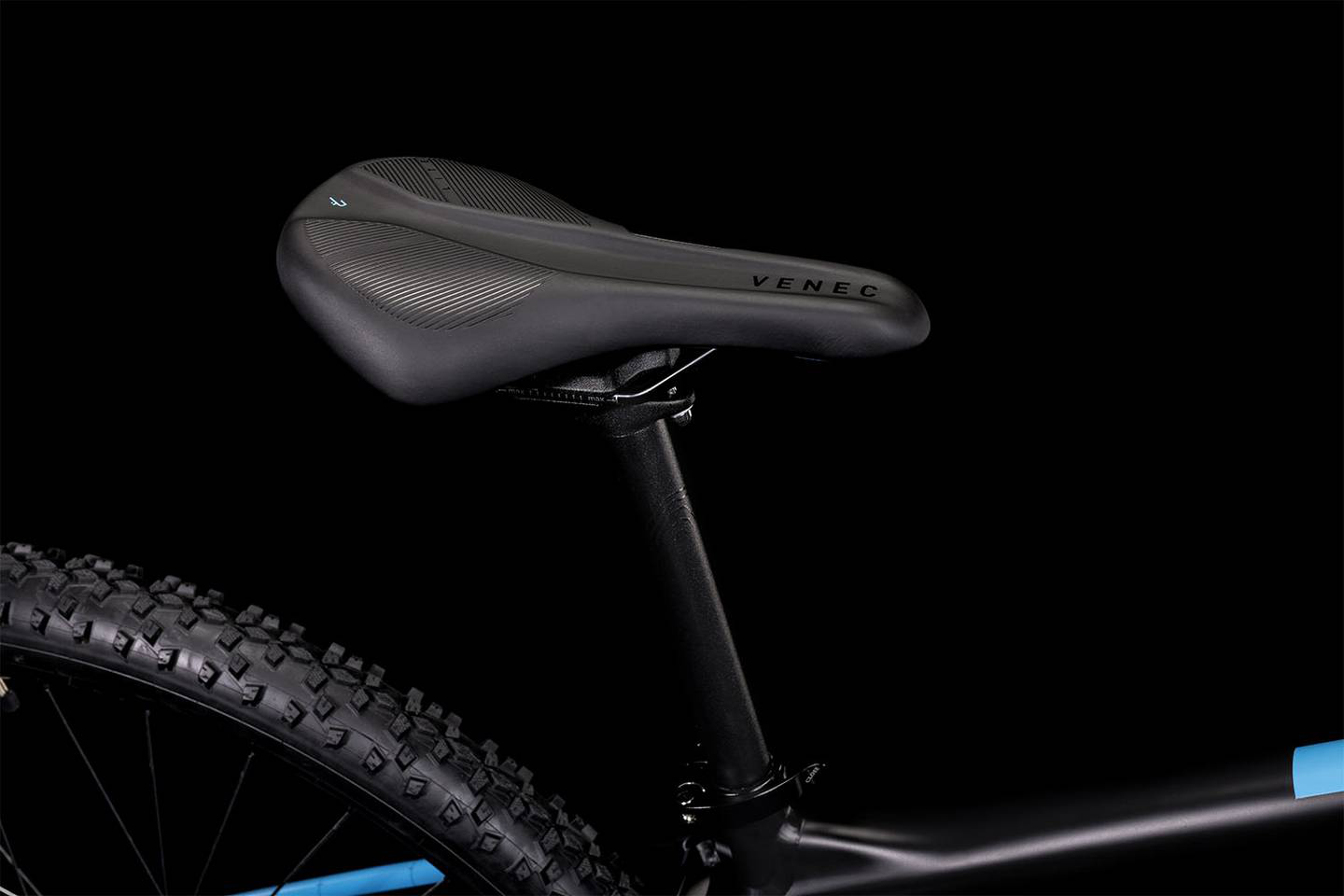

• SADDLE Natural Fit Venec Lite
• HEADSET CUBE FPH863, Semi-Integrated
• PEDALS CUBE PP MTB
• WEIGHT 14,8 kg
• COLOUR black´n´blue
• ART. NO 501100
